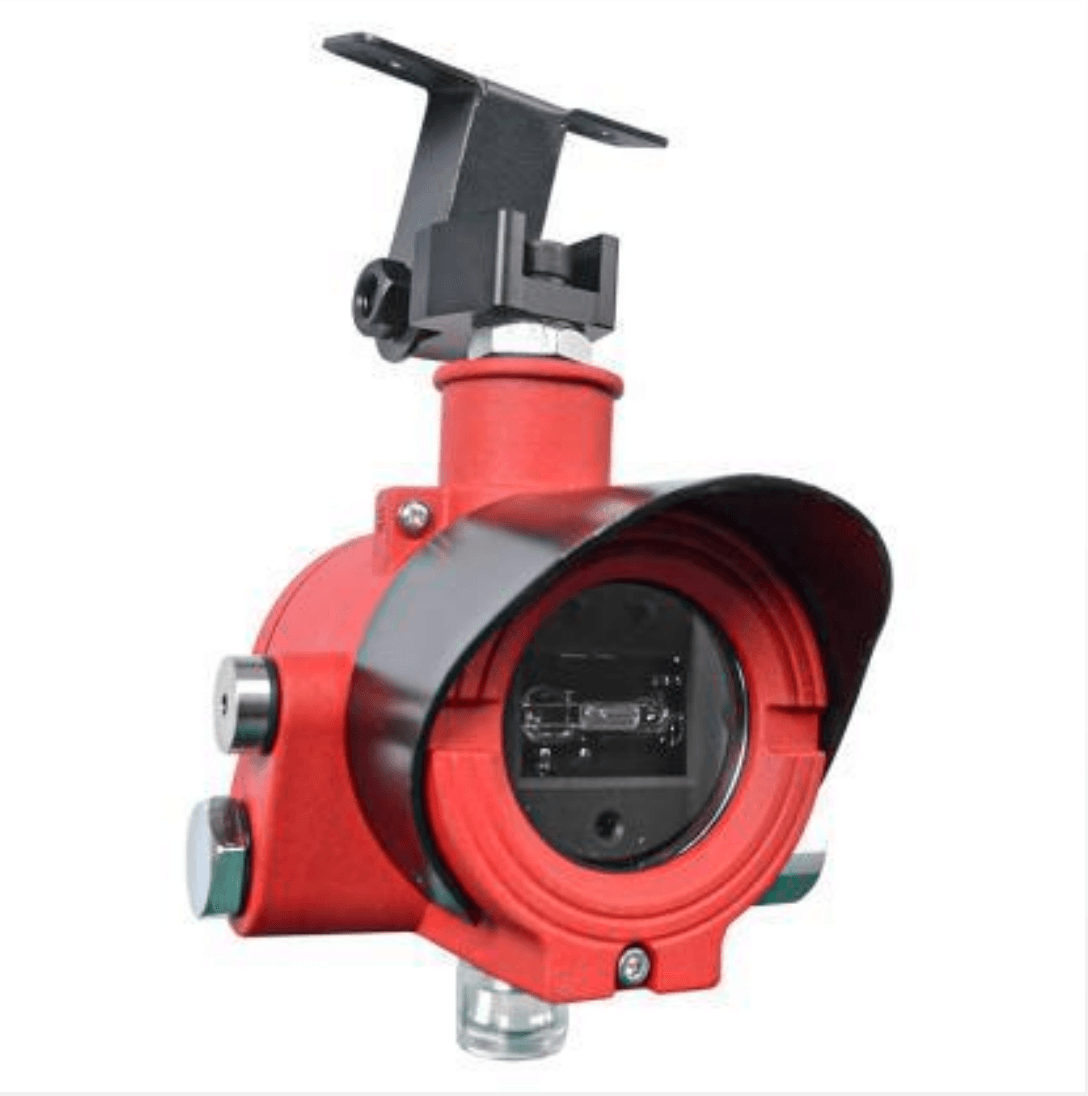

A point-type flame detector combining three infrared channels and ultraviolet sensing, with relay, analogue and RS485 outputs.
A point-type flame detector combining three infrared channels and ultraviolet sensing, with relay, analogue and RS485 outputs. Confirm the selected variant, installation environment and reporting requirements before ordering.
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| IR spectrum | 4.4 μm primary; 5.3 μm and 3.8 μm suppression channels | — | — |
| UV spectrum | 185–260 nm | — | — |
| Response time | <5 seconds under brochure conditions | — | — |
| Working supply | 24 V DC | — | — |
| Outputs | Relay; 4–20 mA; RS485 | — | — |
| Protection | IP67 | — | — |
| Dimensions | 190 × 160 × 110 mm | — | — |
| Operating temperature | -10°C to +55°C | — | — |
| Response Spectrum | IR: 4.4μm (CO₂ primary), 5.3μm, 3.8μm | UV: 185–260nm | — | — |
| Viewing Angle | ≤ 110° | — | — |
